中华肺部疾病杂志(电子版) ›› 2026, Vol. 19 ›› Issue (04) : 560 -565. doi: 10.3877/cma.j.issn.1674-6902.2026.04.005

论著

CT肿瘤内部异质性对NSCLC患者免疫治疗反应性的预测价值
刘慧, 赵燕霞, 汪海涛, 魏肖慧, 魏雪梅()
  1. 830000 乌鲁木齐,新疆维吾尔自治区人民医院呼吸与危重症医学中心
  • 收稿日期:2026-03-27 出版日期:2026-08-25
  • 通信作者: 魏雪梅
  • 基金资助:
    新疆维吾尔自治区自然科学基金资助项目(2025D01C408)

Predictive value of CT-derived intratumoral heterogeneity for immunotherapy response in patients with non-small cell lung cancer

Hui Liu, Yanxia Zhao, Haitao Wang, Xiaohui Wei, Xuemei Wei()

  1. Center of Respiratory and Critical Care Medicine, People′s Hospital of Xinjiang Uygur Autonomous Region, Urumqi 830000, China
  • Received:2026-03-27 Published:2026-08-25
  • Corresponding author: Xuemei Wei
引用本文:

刘慧, 赵燕霞, 汪海涛, 魏肖慧, 魏雪梅. CT肿瘤内部异质性对NSCLC患者免疫治疗反应性的预测价值[J/OL]. 中华肺部疾病杂志(电子版), 2026, 19(04): 560-565.

Hui Liu, Yanxia Zhao, Haitao Wang, Xiaohui Wei, Xuemei Wei. Predictive value of CT-derived intratumoral heterogeneity for immunotherapy response in patients with non-small cell lung cancer[J/OL]. Chinese Journal of Lung Diseases(Electronic Edition), 2026, 19(04): 560-565.

目的

探讨基于计算机断层扫描(computed tomography, CT)肿瘤内部生境影像组学特征量化肿瘤内部异质性(intratumoral heterogeneity, ITH)对非小细胞肺癌(nonsmall cell lung cancer, NSCLC)患者免疫检查点抑制剂(immune checkpoint inhibitors, ICIs)治疗反应性的预测价值。

方法

选择2022年6月至2025年6月我院拟行帕博利珠单抗联合铂类双药治疗NSCLC患者148例作为训练集,同期患者98例为验证集。治疗前采集CT图像并提取生境影像组学特征,采用LASSO回归筛选核心特征构建ITHscore模型。治疗结束后根据RECIST标准评估疗效,将训练集完全缓解和部分缓解分为缓解组79例,疾病稳定和疾病进展分为未缓解组69例。比较两组临床资料,采用单因素及多因素Logistic回归分析影响ICIs治疗反应性的独立因素,通过受试者特征曲线(receiver operating characteristic, ROC)和决策曲线(decision curve analysis, DCA)判断预测效能。

结果

训练集中缓解组与未缓解组年龄、性别、临床分期及程序性死亡配体1(programmed deathligand 1, PD-L1)表达水平差异有统计学意义(P<0.05)。LASSO回归从1524个放射组学特征中筛选出8个非零系数核心特征构建ITHscore。多因素Logistic回归显示,年龄(OR=1.145,95%CI:1.031~1.272,P=0.011)、性别(OR=2.447,95%CI:1.079~5.550,P=0.032)、临床分期(OR=3.555,95%CI:1.581~7.992,P=0.002)、PDL1表达(OR=0.887,95%CI:0.847~0.929,P=0.007)及ITHscore(OR=1.895,95%CI:1.261~2.848,P=0.002)为影响ICIs治疗反应性的危险因素。ROC分析显示,ITHscore模型AUC为0.818(95%CI:0.737~0.882),临床特征模型AUC为0.793(95%CI:0.710~0.862)(P>0.05);联合模型AUC为0.896(95%CI:0.827~0.944),敏感度75.61%,特异度91.23%,优于单一模型。验证集中联合模型AUC为0.879(95%CI:0.807~0.931),敏感度70.73%,特异度92.41%。DCA显示,当阈值概率为0.25时,联合模型净获益0.27高于ITHscore模型0.23和临床特征模型0.11。

结论

基于CT肿瘤内部异质性影像组学特征构建的ITHscore联合临床特征模型预测NSCLC患者ICIs治疗反应性区分能力和临床净获益良好,有助于早期识别免疫治疗获益人群。

Objective

To investigate the predictive value of intratumoral heterogeneity (ITH) quantified by computed tomography (CT)-based habitat radiomic features for the response to immune checkpoint inhibitors (ICIs) in patients with non-small cell lung cancer (NSCLC).

Methods

A total of 148 NSCLC patients scheduled to receive pembrolizumab plus platinum-based doublet chemotherapy at our hospital from June 2022 to June 2025 were enrolled as the training cohort, and another 98 patients treated during the same period served as the validation cohort. Pre-treatment CT images were acquired and habitat radiomic features were extracted. LASSO regression was used to select core features for constructing the ITHscore model. After treatment completion, treatment response was assessed according to RECIST criteria. In the training cohort, patients with complete response or partial response were classified as the response group (n=79), while those with stable disease or progressive disease were classified as the nonresponse group (n=69). Clinical data were compared between the two groups. Univariate and multivariate logistic regression analyses were performed to identify independent factors associated with ICI response. Predictive performance was evaluated using receiver operating characteristic (ROC) curves and decision curve analysis (DCA).

Results

In the training cohort, significant differences were observed between the response and nonresponse groups in age, sex, clinical stage, and programmed deathligand 1 (PDL1) expression level (all P<0.05). LASSO regression selected 8 core features with nonzero coefficients from 1, 524 radiomic features to construct the ITHscore. Multivariate logistic regression showed that age (OR=1.145, 95%CI: 1.031~1.272, P=0.011), sex (OR=2.447, 95%CI: 1.079~5.550, P=0.032), clinical stage (OR=3.555, 95%CI: 1.581~7.992, P=0.002), PDL1 expression (OR=0.887, 95%CI: 0.847~0.929, P=0.007), and ITHscore (OR=1.895, 95%CI: 1.261~2.848, P=0.002) were independent predictors of ICI response. ROC analysis showed that the AUC of the ITHscore model was 0.818 (95%CI: 0.737~0.882), and that of the clinical feature model was 0.793 (95%CI: 0.710~0.862) (P>0.05). The combined model achieved an AUC of 0.896 (95%CI: 0.827~0.944), with a sensitivity of 75.61% and specificity of 91.23%, outperforming either single model. In the validation cohort, the combined model yielded an AUC of 0.879(95%CI: 0.807~0.931), sensitivity of 70.73%, and specificity of 92.41%. DCA demonstrated that at a threshold probability of 0.25, the net benefit of the combined model (0.27) was higher than that of the ITHscore model (0.23) and the clinical feature model (0.11).

Conclusion

The ITHscore combined with clinical features, constructed from CTbased intratumoral heterogeneity radiomic features, demonstrates good discriminative ability and clinical net benefit for predicting ICI response in NSCLC patients, and may facilitate early identification of patients likely to benefit from immunotherapy.

图1 NSCLC患者胸部CT图。图A为CT示右肺下叶团块,考虑恶性病变,并周围阻塞性炎症;图B为CT示左肺下叶后基底段软组织密度影,恶性病变可能性大
表1 两组NSCLC患者临床资料结果
表2 NSCLC患者免疫治疗反应性多因素Logistic回归分析

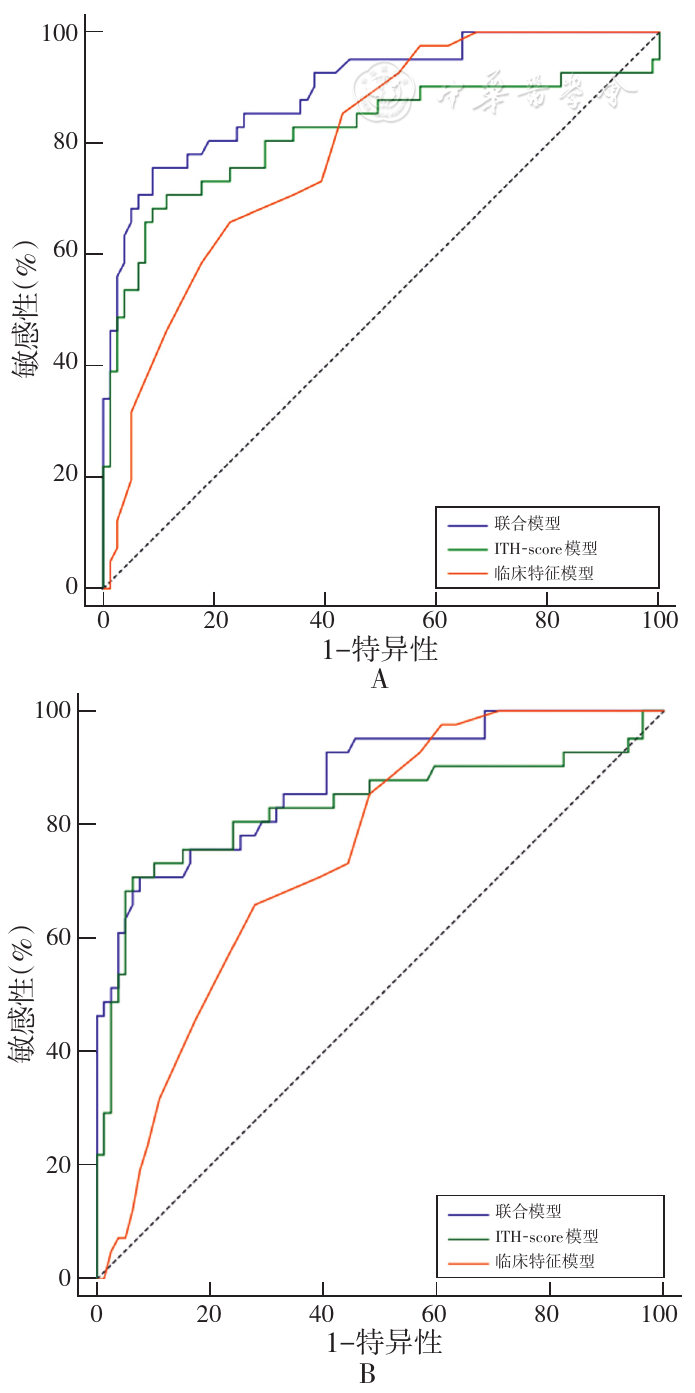

图2 NSCLC患者免疫治疗反应性ROC曲线。图A为训练集ROC曲线;图B为验证集ROC曲线

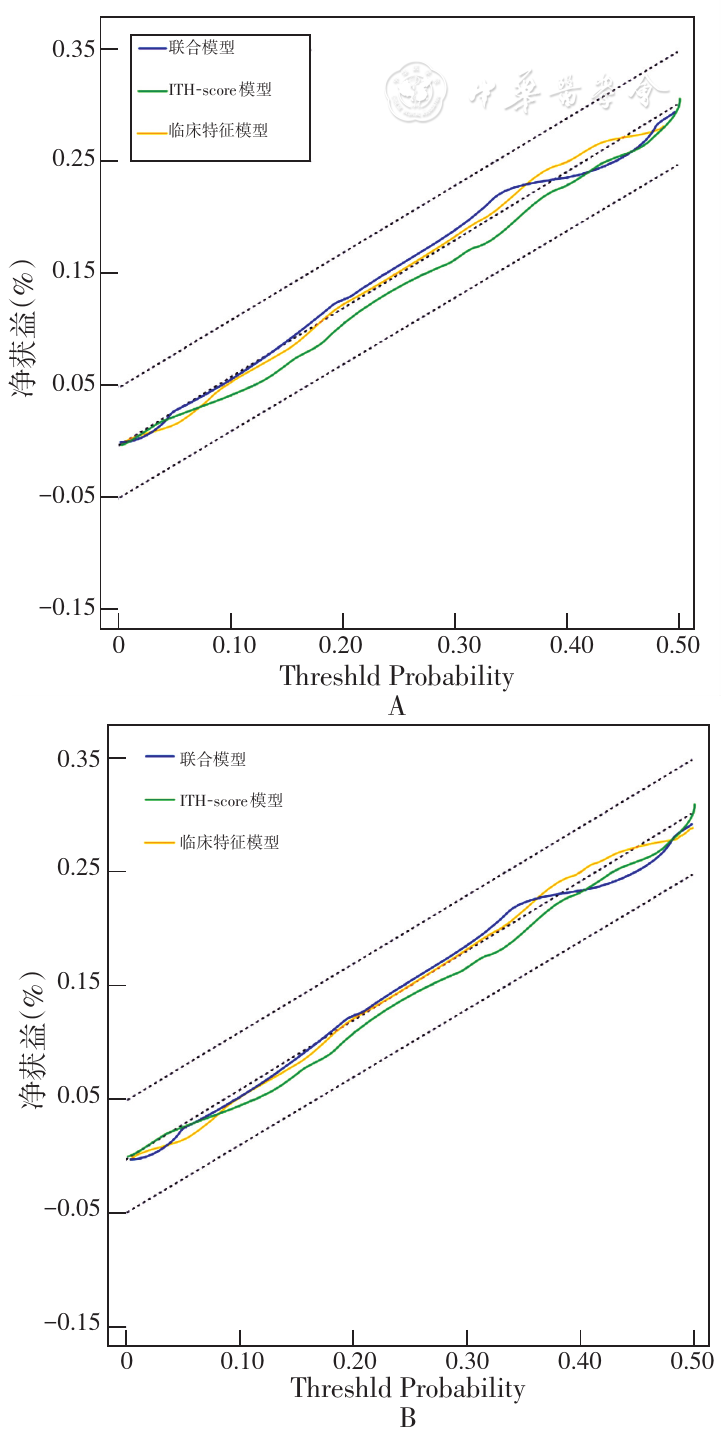

图3 NSCLC患者免疫治疗反应性预测的DCA曲线。图A为训练集DCA曲线;图B为验证集DCA曲线
表3 训练集与测试集NSCLC患者免疫治疗反应性的预测性能
1
中国抗癌协会整合肿瘤学分会,中国抗癌协会肿瘤标志专业委员会. 非小细胞肺癌放疗联合免疫治疗中国专家共识(2024版)[J]. 中国癌症防治杂志2024, 16(5): 505-515.
2
王园,杨懿,牟云飞,等. 可切除非小细胞肺癌患者术后奥西替尼靶向治疗分析[J/OL]. 中华肺部疾病杂志(电子版), 2022, 15(5): 657-660.
3
陈旭,牛凯,孙建国. 放疗联合免疫治疗对驱动基因阴性NSCLC的困惑分析及应对策略[J/OL]. 中华肺部疾病杂志(电子版), 2024, 17(3): 341-348.
4
王洁,赫捷,国家肿瘤质控中心肺癌质控专家委员会,等. 中国肺癌免疫治疗规范化应用指南(2024版)[J]. 中国肿瘤临床与康复2024, 31(11): 659-700.
5
Mok TSK, Wu Y, Kudaba I, et al. Pembrolizumab versus chemotherapy for previously untreated, PD-L1-expressing, locally advanced or metastatic non-small-cell lung cancer (KEYNOTE-042): a randomised, open-label, controlled, phase 3 trial[J]. Lancet (London, England), 2019, 393(10183): 1819-1830.
6
Liu Y, Feng C, Zhou Y, et al. Simulating the dynamic intra-tumor heterogeneity and therapeutic responses[J]. Cancers, 2022, 14(7): 1645.
7
Song X, Xiong A, Wu F, et al. Spatial multi-omics revealed the impact of tumor ecosystem heterogeneity on immunotherapy efficacy in patients with advanced non-small cell lung cancer treated with bispecific antibody[J]. Journal for immunotherapy of cancer, 2023, 11(2): e6234.
8
国家卫健委. 原发性肺癌诊疗规范(2018年版)[J]. 肿瘤综合治疗电子杂志2019, 5(3): 100-120.
9
Chen Y, Dai S, Cheng C, et al. Lenvatinib and immune-checkpoint inhibitors in hepatocellular carcinoma: mechanistic insights, clinical efficacy, and future perspectives[J]. Journal of hematology & oncology, 2024, 17(1): 130.
10
Wang J, Wang J, Huang X, et al. CT radiomics-based model for predicting TMB and immunotherapy response in non-small cell lung cancer[J]. BMC medical imaging, 2024, 24(1): 45.
11
Sobral D, Martins M, Kaplan S, et al. Genetic and microenvironmental intra-tumor heterogeneity impacts colorectal cancer evolution and metastatic development[J]. Communications biology, 2022, 5(1): 937.
12
Yang H, Cheng J, Zhuang H, et al. Pharmacogenomic profiling of intra-tumor heterogeneity using a large organoid biobank of liver cancer[J]. Cancer cell, 202442(4):535-551.
13
Masatti L, Marchetti M, Pirrotta S, et al. The unveiled mosaic of intra-tumor heterogeneity in ovarian cancer through spatial transcriptomic technologies: A systematic review[J]. J Laborat Clin Med, 2024, 273: 104-114.
14
Zhao X, Liang Y, Zhang X, et al. Deep learning signatures reveal multiscale intratumor heterogeneity associated with biological functions and survival in recurrent nasopharyngeal carcinoma[J]. Eur J Nuclear Med Molecul Imag, 2022, 49(8): 2972-2982.
15
Prior O, Macarro C, Navarro V, et al. Identification of precise 3D CT radiomics for habitat computation by machine learning in cancer[J]. Radiol Artif Intell, 2024, 6(2): e230118.
16
Fountzilas E, Pearce T, Baysal MA, et al. Convergence of evolving artificial intelligence and machine learning techniques in precision oncology[J]. NPJ Digital Med, 2025, 8(1): 75.
17
Li J, Qiu Z, Zhang C, et al. ITHscore: comprehensive quantification of intra-tumor heterogeneity in NSCLC by multi-scale radiomic features[J]. Eur Radiol, 2023, 33(2): 893-903.
18
Li J, Li Z, Wang Y, et al. CT radiomics-based intratumoral and intertumoral heterogeneity indicators for prognosis prediction in gastric cancer patients receiving neoadjuvant chemotherapy[J]. Eur Radiol, 2025, 35(8): 4448-4460.
19
Crombé A, Sitruk LA, Masson-grehaigne C, et al. Single and multi-site CT-based radiogenomics analysis of metastatic lung adenocarcinoma and correlations with outcome[J]. Eur Radiol, 2026: 10-1007.
20
Crombé A, Lafon M, Nougaret S, et al. Ranking the most influential predictors of CT-based radiomics feature values in metastatic lung adenocarcinoma[J]. Eur J Radiol, 2022, 155: 110472.
21
Yang N, Yue H, Zhang B, et al. Predicting pathological response to neoadjuvant or conversion chemoimmunotherapy in stage ⅠB-Ⅲ non-small cell lung cancer patients using radiomic features[J]. Thoracic Cancer, 2023, 14(28): 2869-2876.
22
Han X, Wang M, Zheng Y, et al. Delta-radiomics features for predicting the major pathological response to neoadjuvant chemoimmunotherapy in non-small cell lung cancer[J]. Eur Radiol, 2024, 34(4): 2716-2726.
