中华肺部疾病杂志(电子版) ›› 2026, Vol. 19 ›› Issue (04) : 542 -551. doi: 10.3877/cma.j.issn.1674-6902.2026.04.003

论著

基于单细胞RNA测序整合分析揭示肺腺癌肿瘤细胞恶性增殖的转录调控网络分析
陈典刚1, 王欣欣1, 黄露2, 刘博2,()
  1. 1400037 重庆,陆军(第三)军医大学第二附属医院肿瘤科
    2400037 重庆,陆军(第三)军医大学第二附属医院肿瘤科病理科
  • 收稿日期:2026-04-07 出版日期:2026-08-25
  • 通信作者: 刘博
  • 基金资助:
    重庆市自然科学基金(cstc2021jcyj-msxmX0588); 重庆市自然科学基金创新发展联合基金项目(CSTB2024NSCQ-LZX0017); 重庆市中青年医学高端人才项目(YXGD202508)

Integrated analysis of single-cell RNA-seq reveals the transcriptional regulatory network of malignant proliferation in lung adenocarcinoma cells

Diangang Chen1, Xinxin Wang1, Lu Huang2, Bo Liu2,()

  1. 1Departments of Oncology, the Second Affiliated Hospital of Army Medical University, Chongqing 400037, China
    2Departments of Pathology, the Second Affiliated Hospital of Army Medical University, Chongqing 400037, China
  • Received:2026-04-07 Published:2026-08-25
  • Corresponding author: Bo Liu
引用本文:

陈典刚, 王欣欣, 黄露, 刘博. 基于单细胞RNA测序整合分析揭示肺腺癌肿瘤细胞恶性增殖的转录调控网络分析[J/OL]. 中华肺部疾病杂志(电子版), 2026, 19(04): 542-551.

Diangang Chen, Xinxin Wang, Lu Huang, Bo Liu. Integrated analysis of single-cell RNA-seq reveals the transcriptional regulatory network of malignant proliferation in lung adenocarcinoma cells[J/OL]. Chinese Journal of Lung Diseases(Electronic Edition), 2026, 19(04): 542-551.

目的

整合多套人肺癌单细胞转录组公共数据,系统解析肺腺癌肿瘤细胞恶性增殖转录调控网络的分子机制,筛选驱动肿瘤增殖的核心基因与转录因子,为肺癌早期诊断和靶向治疗提供理论依据。

方法

整合GSE131907、GSE149655、GSE148071及E-MTAB-6149四套肺癌scRNA-seq数据集,经质控、标准化及Harmony批次校正后获得199 489个高质量细胞。采用Louvain聚类和经典标记基因注释细胞类型,通过inferCNV结合高斯混合模型(gaussian mixture model, GMM)基于拷贝数变异(copy number variation, CNV)特征精准区分肿瘤上皮细胞与正常上皮细胞。运用Wilcoxon秩和检验筛选差异表达基因(differentially expressed genes, DEGs)。通过加权基因共表达网络分析(weighted gene co-expression network analysis,WGCNA)鉴定关键功能模块,利用GENIE3算法构建转录因子调控网络。在A549细胞中通过siRNA敲低高迁移率族蛋白B2(high mobility group box 2, HMGB2),采用qRT-PCR验证核心转录因子及下游靶基因的表达变化。

结果

整合数据集经批次校正后细胞均匀混合,共鉴定出20个细胞亚群,分为免疫细胞(65.18%)、上皮细胞(27.43%)、内皮细胞(4.60%)和成纤维细胞(2.79%)。基于CNV的GMM方法成功识别23 505个肿瘤细胞(占上皮细胞44.90%),高置信度肿瘤细胞占80.59%。WGCNA鉴定出蓝色模块为与细胞周期高度相关的关键模块,其活性在S期和G2M期显著升高,核心基因均为经典细胞周期驱动基因。转录调控网络分析揭示FOXM1、E2F7、HMGB2等7个核心转录因子形成紧密互作网络。细胞实验证实,敲低HMGB2可显著下调FOXM1、E2F7、TOP2A等关键基因的表达。

结论

整合多套肺癌单细胞转录组数据,构建肺癌上皮细胞异质性的单细胞图谱,阐明以HMGB2-FOXM1/E2F7/HMGA1-细胞周期基因为核心轴的转录调控网络驱动肺癌上皮细胞恶性增殖的分子机制。结果为肺癌的早期诊断标志物筛选和靶向治疗策略开发提供了新的理论依据和潜在分子靶点。

Objective

To systematically dissect the molecular mechanisms underlying the transcriptional regulatory network governing malignant proliferation of lung adenocarcinoma cells through integrated analysis of multiple public human lung cancer single-cell transcriptomic datasets, and to identify core genes and transcription factors driving tumor proliferation, thereby providing a theoretical basis for early diagnosis and targeted therapy of lung cancer.

Methods

Four public lung cancer scRNA-seq datasets (GSE131907, GSE149655, GSE148071, and E-MTAB-6149) were integrated and processed. After quality control, normalization, and batch correction using Harmony, a total of 199 489 high-quality cells were retained. Cell clustering was performed using the Louvain algorithm, and cell types were annotated using canonical marker genes. InferCNV combined with Gaussian mixture modeling (GMM) was applied to accurately distinguish tumor epithelial cells from normal epithelial cells based on copy number variation (CNV) profiles. Differentially expressed genes (DEGs) were identified using the Wilcoxon rank-sum test. Weighted gene co-expression network analysis (WGCNA) was performed to identify key functional modules, and the GENIE3 algorithm was used to construct transcription factor regulatory networks. Finally, HMGB2 was knocked down in A549 cells via siRNA transfection, and the expression changes of core transcription factors and their downstream target genes were validated by qRT-PCR.

Results

After batch correction, cells from different datasets were uniformly mixed. A total of 20 cell clusters were identified and classified into four major lineages: immune cells (65.18%), epithelial cells (27.43%), endothelial cells (4.60%), and fibroblasts (2.79%). Using CNV-based GMM analysis, 23 505 tumor cells were successfully identified (44.90% of all epithelial cells), among which 80.59% were classified as high-confidence malignant cells. WGCNA identified the blue module as the key module highly associated with the cell cycle, whose activity was markedly elevated in S and G2/M phases, with all hub genes being canonical cell cycle drivers. Transcriptional regulatory network analysis uncovered a tightly interacting regulatory circuit consisting of seven core transcription factors, including FOXM1, E2F7, and HMGB2. Functional cell experiments confirmed that knockdown of HMGB2 significantly downregulated the expression of key genes including FOXM1, E2F7, and TOP2A.

Conclusions

This study successfully integrated multiple lung cancer single-cell transcriptomic datasets and established a comprehensive single-cell atlas of lung cancer epithelial cell heterogeneity. We elucidated the molecular mechanism by which the core transcriptional regulatory axis centered on HMGB2-FOXM1/E2F7/HMGA1-cell cycle genes drives malignant proliferation of lung cancer epithelial cells. These findings provide a novel theoretical basis and potential molecular targets for the identification of early diagnostic biomarkers and the development of targeted therapeutic strategies for lung cancer.

表1 文中所用引物序列

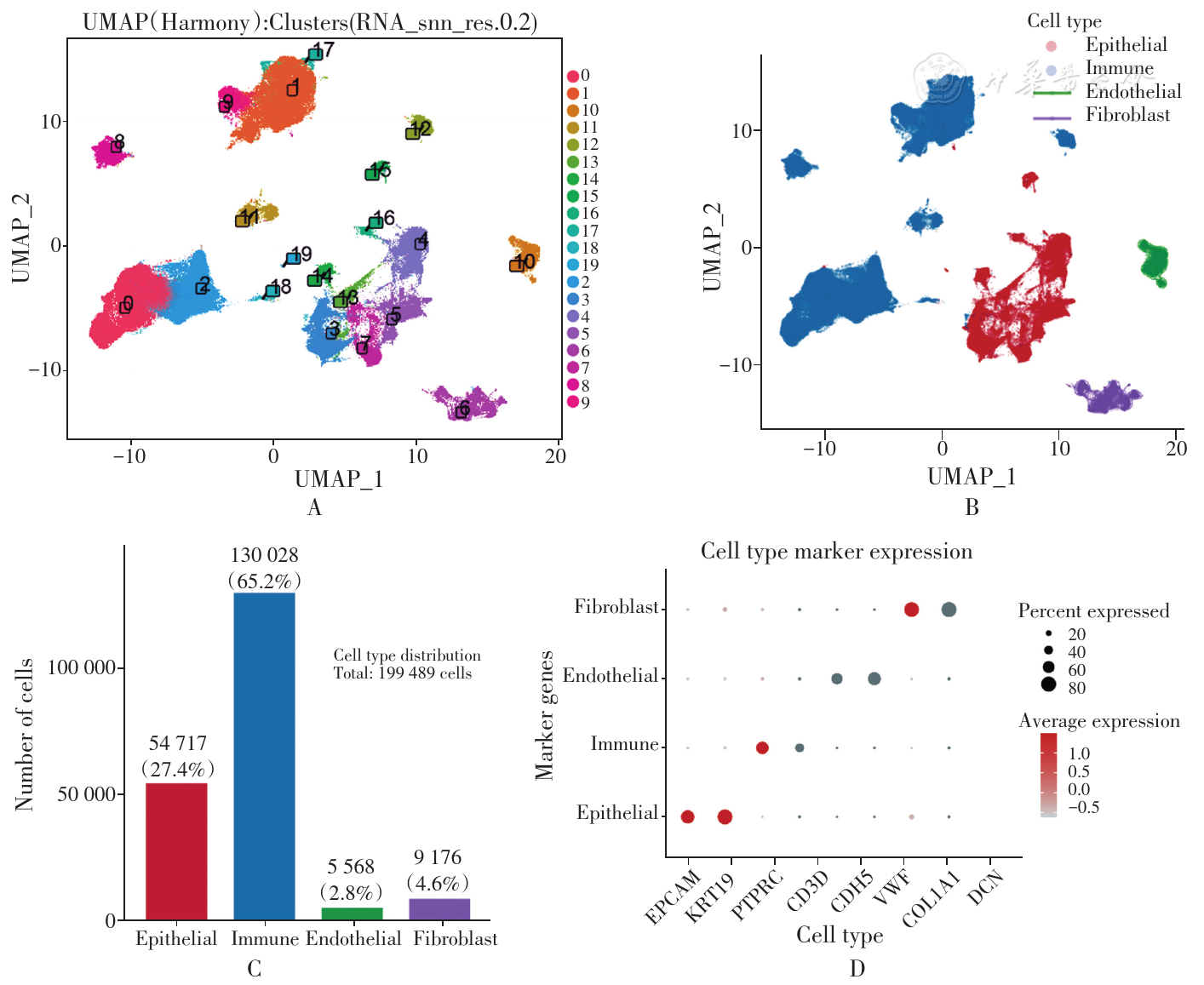

图1 整合肺腺癌单细胞图谱的细胞类型鉴定与注释。图A为基于Harmony批次校正的4套肺腺癌单细胞整合数据无监督聚类;图B为按细胞类型注释的UMAP降维图;图C为各细胞类型数量及占比柱状图;图D为各细胞类型细胞Marker气泡图注:Clusters为组;Epithelial为上皮细胞;Immune为免疫细胞;Endothelial为内皮细胞;Fibroblast为成纤维细胞;Cell type distribution为细胞类型分布;Cell type marker expression为细胞类型标志物表达;Number of cells为细胞数量;Cell type为细胞种类;Marker genes为标记基因;UMAP(Harmony)为Clusters(RNA_snn_res.0.2)为经Harmony整合后的UMAP降维聚类图为细胞亚群;Percent expressed为表达百分比;Average expression为平均表达量

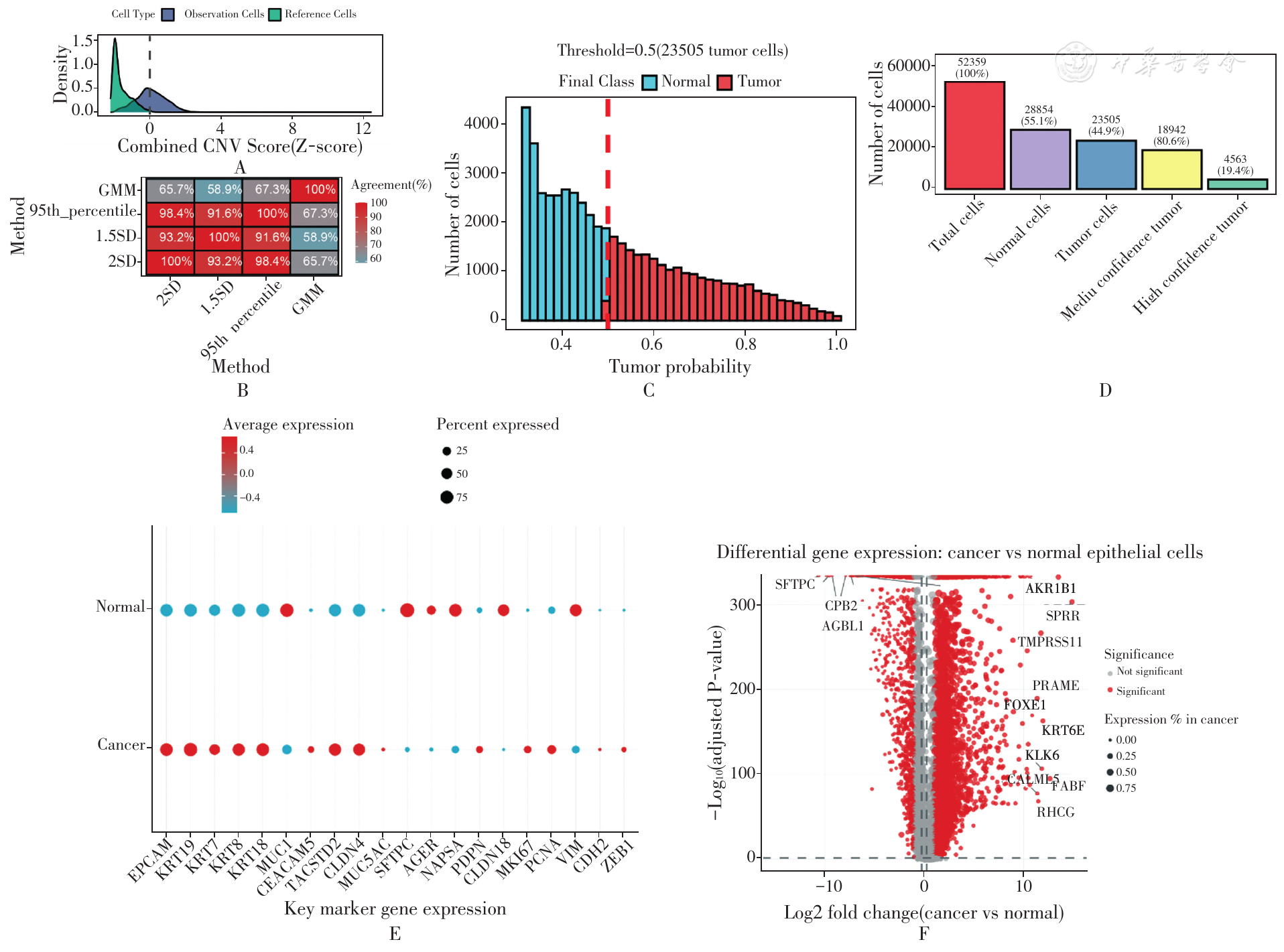

图2 基于拷贝数变异(CNV)的肿瘤细胞识别与验证。图A为CNV得分分布;图B为多种方法识别肿瘤细胞比例;图C为GMM肿瘤概率分布;图D为最终肿瘤/正常细胞分类统计;图E为关键标记基因气泡图;图F为差异基因火山图注:Observation cells为观察细胞;Reference cells为参考细胞;Density为密度;Threshold为阈值;Final class为最终类别;Total cells为细胞总数;Normal cells为正常细胞;Tumor cells为肿瘤细胞;Medium confidence tumor为中等置信度肿瘤细胞;High confidence tumor为高置信度肿瘤细胞;Average expression为平均表达量;Percent expression为表达百分比;Differential gene expression:Cancer vs. Normal epithelial cells为差异基因表达:癌细胞与正常上皮细胞

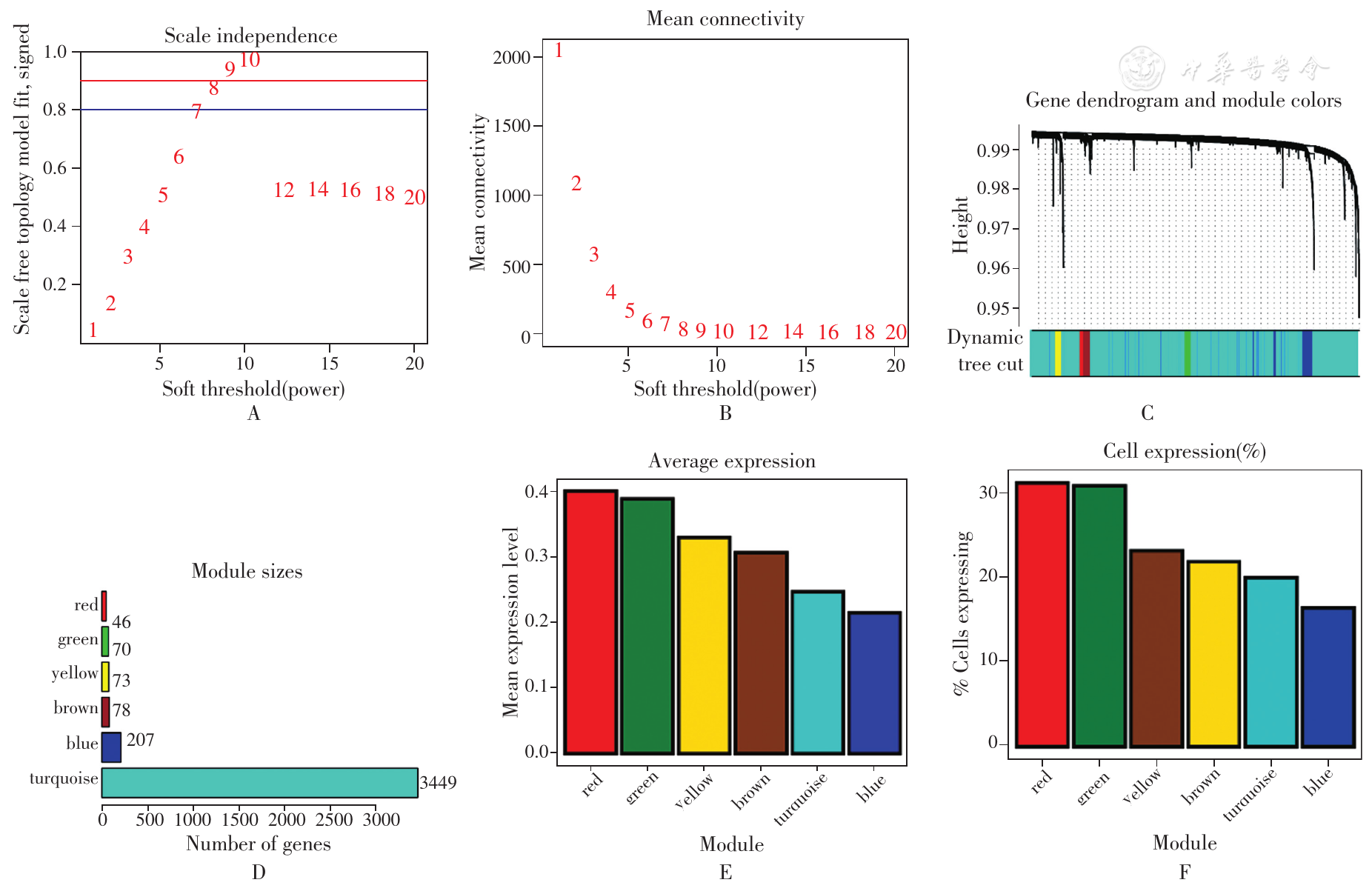

图3 WGCNA分析。图A为软阈值选择(Scale independence);图B为软阈值选择(Mean connectivity);图C为基因聚类树+模块识别+模块特征基因聚类;图D为模块大小水平柱状图;图E为模块特征(平均表达);图F为模块特征(表达细胞百分比)注:Scale independence为尺度独立性;Mean connectivity为平均连通度;Soft threshold(power)为软阈值(幂指数);Gene dendrogram and module colors为基因树状图与模块颜色;Dynamic tree cut为动态树切割法;Mean expression level为平均表达水平;Module sizes为模块大小;Cells expression为细胞表达
图4 蓝色模块是上皮细胞中与细胞周期增殖高度相关的功能模块。图A为Blue模块KEGG分析。图B为Brown模块KEGG分析。图C为Blue模块细胞周期分群分析。图D为MM-GS散点图;图E为核心转录因子层级调控关系示意图;图F为qRT-PCR检测注:KEGG pathways-blue module为蓝色模块的KEGG通路;Cell cycle为细胞周期;Progesterone mediated oocyte maturation为孕酮介导的卵母细胞成熟;Oocyte meiosis为卵母细胞减数分裂;Motor proteins为驱动蛋白;DNA replication DNA为复制;Pyrimidine metabolism为嘧啶代谢;Human T-cell leukemia virus1 infection为人类T细胞白血病病毒1型感染;P53 signaling pathwayP53为信号通路;Fanconi anemia pathway为范可尼贫血通路;Nucleotide metabolism为核苷酸代谢;Cellular senescence为细胞衰老;Base excision repair为碱基切除修复;Mismatch repair为错配修复;Huntington disease为亨廷顿病;Parkinson disease为帕金森病;KEGG pathways-brown module为棕色模块的KEGG通路;Cornified envelope formation为角质化包膜形成;ECM-receptor interaction为细胞外基质-受体相互作用;Integrin signaling为整合素信号通路;Module menbership(MM) vs. gene significance(GS)为模块成员度vs.基因显著性;Blue module (cell cycle proliferation)为蓝色模块(细胞周期增殖)
1
Leiter A, Veluswamy RR, Wisnivesky JP. The global burden of lung cancer: current status and future trends[J]. Nat Rev Clin Oncol, 2023, 20(9): p. 624-639.
2
Huang H, Yang YF, Zhu YH, et al. Blood protein biomarkers in lung cancer[J]. Cancer Lett, 2022, 551: 215886.
3
王园,杨懿,牟云飞,等. 可切除非小细胞肺癌患者术后奥西替尼靶向治疗分析[J/OL]. 中华肺部疾病杂志(电子版), 2022, 15(5): 657-660.
4
陈旭,牛凯,孙建国. 放疗联合免疫治疗对驱动基因阴性NSCLC的困惑分析及应对策略[J/OL]. 中华肺部疾病杂志(电子版), 2024, 17(3): 341-348.
5
Xu JC, Zhang YD, Li M, et al. A single-cell characterised signature integrating heterogeneity and microenvironment of lung adenocarcinoma for prognostic stratification[J]. EBioMedicine, 2024, 102: 105092.
6
Li DK, Yu HS, Hu JJ, et al. Comparative profiling of single-cell transcriptome reveals heterogeneity of tumor microenvironment between solid and acinar lung adenocarcinoma[J]. J Transl Med, 2022, 20(1): 423.
7
Mao SQ, Chen L, Li QY, et al. Unveiling hypoxia-related prognostic and immunotherapeutic biomarkers in lung adenocarcinoma through single-cell and bulk RNA sequencing: Including insights into PGF[J]. Int J Biol Macromol, 2025, 309(Pt 4): 143056.
8
Müller S, Mayer S, Möller P, et al. Spatial distribution of immune checkpoint proteins in histological subtypes of lung adenocarcinoma[J]. Neoplasia, 2021, 23(6): 584-593.
9
Song XM, Zhang T, Ding HL, et al. Non-genetic stratification reveals epigenetic heterogeneity and identifies vulnerabilities of glycolysis addiction in lung adenocarcinoma subtype[J]. Oncogenesis, 2022, 11(1): 61.
10
Wang X, Bai H, Zhang JY, et al. Genetic Intratumor Heterogeneity Remodels the Immune Microenvironment and Induces Immune Evasion in Brain Metastasis of Lung Cancer[J]. J Thorac Oncol, 2024, 19(2): 252-272.
11
Li RT, Alberge JB, Keshavarzian T, et al. Numbat-multiome: inferring copy number variations by combining RNA and chromatin accessibility information from single-cell data[J]. Brief Bioinform, 2025, 26(5): bbaf516.
12
Kim NY, Kim HK, Lee K, et al.Single-cell RNA sequencing demonstrates the molecular and cellular reprogramming of metastatic lung adenocarcinoma[J]. Nat Commun, 2020, 11(1): 2285.
13
Dost AFM, Moye AL, Vedaie M, et al. Organoids model transcriptional hallmarks of oncogenic KRAS activation in lung epithelial progenitor cells[J]. Cell Stem Cell, 2020, 27(4): 663-678 e8.
14
Wu FY, Fan J, He YY, et al. Single-cell profiling of tumor heterogeneity and the microenvironment in advanced non-small cell lung cancer[J]. Nat Commun, 2021, 12(1): 2540.
15
Lambrechts D, Wauters E, Boeckx B, et al. Phenotype molding of stromal cells in the lung tumor microenvironment[J]. Nat Med, 2018, 24(8): 1277-1289.
16
Mallya P, Stevens LM, Zhao J, et al. Facilitating harmonization of variables in framingham, MESA, ARIC, and REGARDS studies through a metadata repository[J]. Circ Cardiovasc Qual Outcomes, 2023, 16(11): e009938.
17
Farkona S, Pastrello C, Konvalinka A. Proteomics: its promise and pitfalls in shaping precision medicine in solid prgan transplantation[J]. Transplantation, 2023, 107(10): 2126-2142.
18
Li RW, Romano JD, Chen Y, et al. Centralized and federated models for the analysis of clinical data[J]. Annu Rev Biomed Data Sci, 2024, 7(1): 179-199.
19
Zhang XY, Wang X, Shivashankar GV, et al. Graph-based autoencoder integrates spatial transcriptomics with chromatin images and identifies joint biomarkers for Alzheimer′s disease[J]. Nat Commun, 2022, 13(1): 7480.
20
Beltran RS , Kilpatrick AM, Picardi S, et al. Maximizing biological insights from instruments attached to animals[J]. Trends Ecol Evol, 2025, 40(1): 37-46.
21
Krones F, Marikkar U, Parsons G, et al. Review of multimodal machine learning approaches in healthcare[J]. Inf Fusion, 2025. 114: doi: 10.1016/j.inffus.2024.102690.
22
Gulmez B. Artificial intelligence applications in ovarian cancer detection:A systematic literature review of deep learning approaches and clinical translation challenges[J]. Crit Rev Oncol Hematol, 2026, 219: 105126.
23
Angelin-Bonnet O, Guo L, Storey R, et al. moiraine: an R package to construct reproducible pipelines for the application and comparison of multi-omics integration methods[J]. Bioinformatics, 2026, 42(3): btag070.
24
Britta V, Jana MB, Ricard A, et al. Identifying temporal and spatial patterns of variation from multimodal data using MEFISTO[J]. Nat Methods, 2022, 19(2): 179-186.
25
Yuan S, Zhang XL, Yang ZM, et al. CaSee: A lightning transfer-learning model directly used to discriminate cancer/normal cells from scRNA-seq[J]. Oncogene, 2022, 41(44): 4866-4876.
26
Zhang JY, Liu YQ, Xia LH, et al. Constructing heterogeneous single-cell landscape and identifying microenvironment molecular characteristics of primary and lymphatic metastatic head and neck squamous cell carcinoma[J]. Comput Biol Med, 2023, 165: 107459.
27
Zhang WR, Tan L, Mu QQ, et al. Integrative modeling of malignant epithelial programs in EGFR-mutant LUAD via single-cell transcriptomics and multi-algorithm machine learning[J]. Front Immunol, 2025, 16: 1661679.
28
Schmid KT, Symeonidi A, Hlushchenko D, et al. Benchmarking scRNA-seq copy number variation callers[J]. Nat Commun, 2025, 16(1): 8777.
29
Mahdipour-Shirayeh A, Erdmann N, Leung-Hagesteijn C, et al. sciCNV:high-throughput paired profiling of transcriptomes and DNA copy number variations at single-cell resolution[J]. Brief Bioinform, 2022, 23(1): bbab413.
